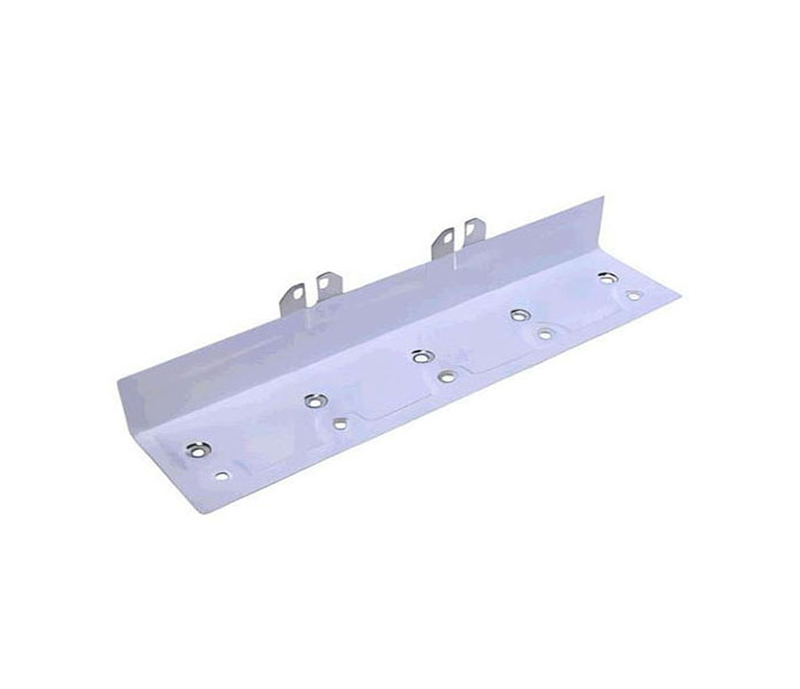

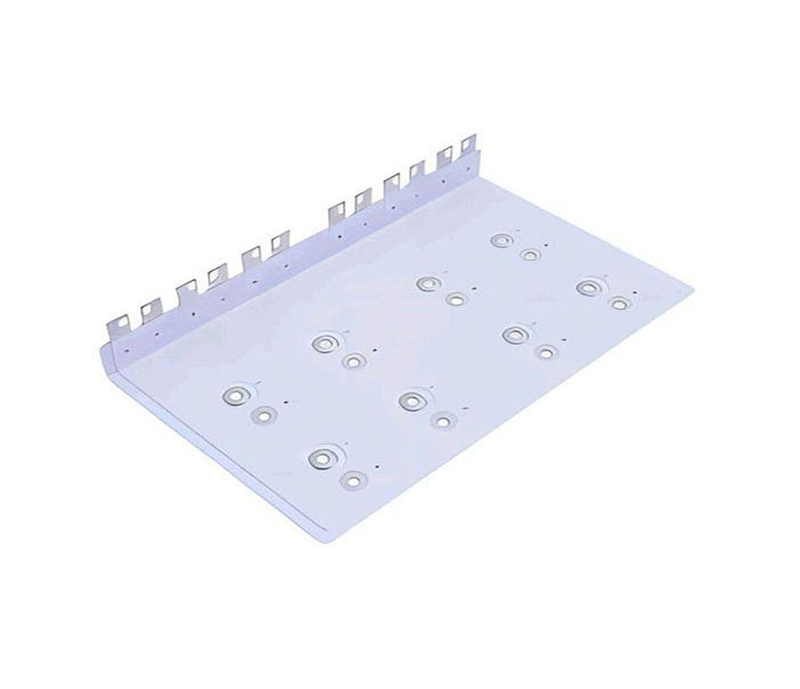

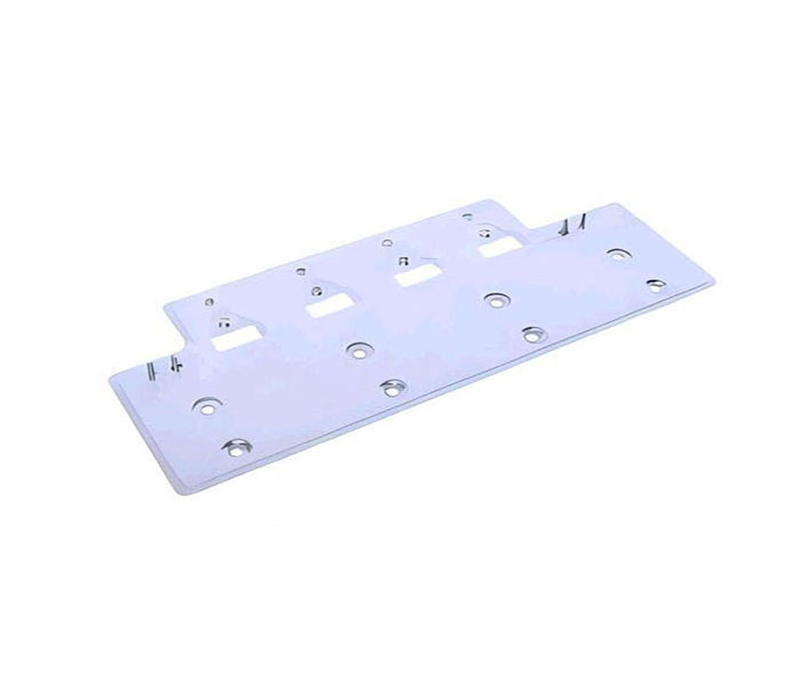

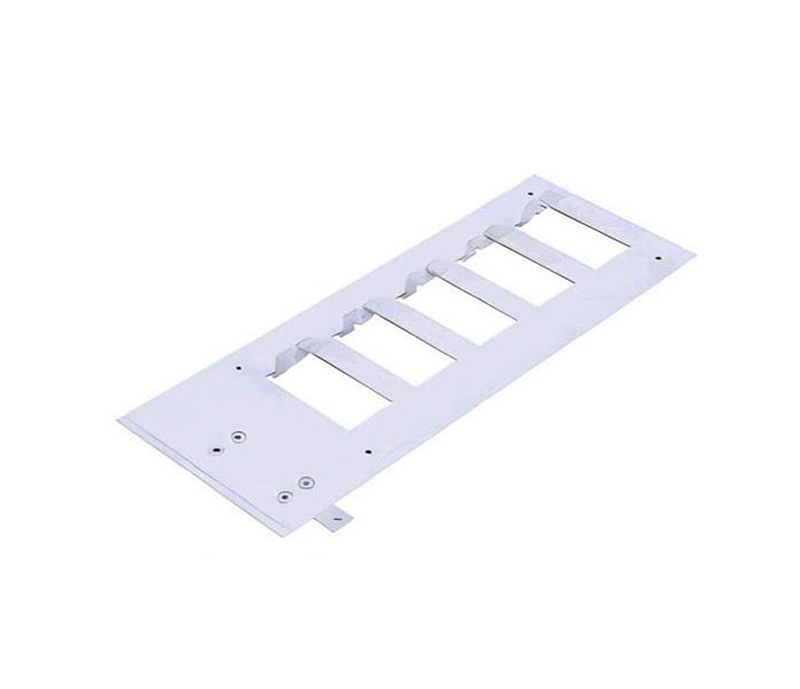

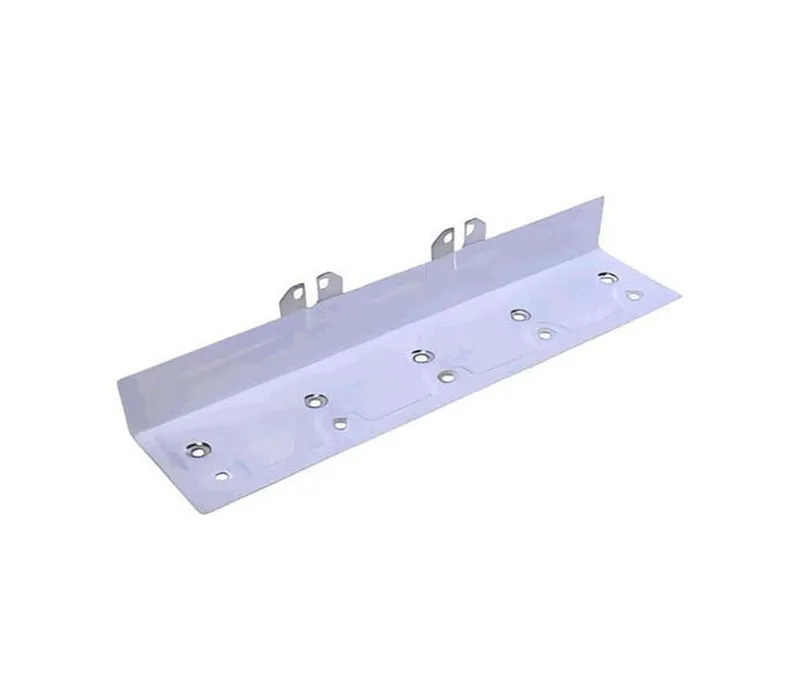

Laminated Inverter Busbars

Product Description

Laminated Inverter Busbars are advanced power connection components engineered for high-performance inverter systems. By integrating multiple layers of metal conductors and insulating materials, they enable efficient power transmission, compact system integration, and optimal electrical performance.


Core advantages and features



Low Inductance & EMI Suppression: laminated structure minimizes parasitic inductance, reducing voltage spikes during switching and suppressing electromagnetic interference (EMI).

High Current-Carrying & Thermal Efficiency: Parallel multi-layer conductors boost current capacity, while optimized thermal paths maintain low temperature rise under high-power density.

Compact Integration & Space Savings: Replaces discrete busbars with an integrated, lightweight design, simplifying wiring, reducing assembly complexity, and saving space. Modular layouts enable rapid system integration.

Customization Flexibility: Tailored to inverter topologies (3-phase full-bridge, multilevel), power ratings, and form factors. Supports prototyping to mass production, aligning with diverse application needs.



Applications
Electric Vehicles (EV/HEV): Drive inverters, onboard chargers (OBC), DC-DC converters
Renewable Energy: Solar inverters (centralized/string), wind converters.
Industrial Automation: Variable-frequency drives (VFDs), servo amplifiers.
Energy Storage & Grid: Battery energy storage systems (ESS), bidirectional inverters, microgrid controllers.

Product Process
Zhejiang Haiyan New Energy Co., Ltd, the introduction of advanced digital technology production line, the realization of metal copper, aluminum profiles manufacturing, according to the requirements of customers in different industries processing metal products.
01
Process
Die-cutting and stacking, molecular expansion welding and other processes. Extrusion, injection molding, plastic dipping, powder dipping, spraying, industrial heat shrink tubing and other insulation processes
02
Material
Copper, aluminum, etc.
03
Shape
Customized shapes, processing of irregular shapes
04
Applications
High and low voltage electrical appliances, vacuum electrical appliances, mining explosion-proof, new energy vehicles, transportation, new power grid system and other fields.
05
Customization
Haiyan new energy can be customized according to user drawings, if you need to customize, please send me the drawings we will be the first time to arrange technical evaluation of the drawings and make samples.
06
Contact Us
For more product information, please contact us, we will provide relevant product solutions.
Phone number: 86-13968860177
