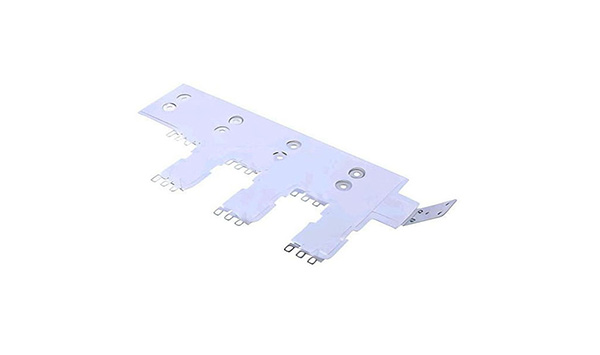

What is a laminated busbar?

A laminated busbar is a power distribution component widely used in power electronic systems. It is composed of multiple layers of conductive materials (typically copper or aluminum) and insulating materials alternately stacked and bonded together. This structure allows it to efficiently conduct large currents while providing electrical insulation between different layers, ensuring the safe and stable operation of the power system.

Key features and advantages of laminated busbars​

1. Multi-layer construction:

Laminated busbars have a distinctive multi-layer structure, consisting of alternating layers of conductive and insulating materials. This design enables separate current paths for different circuits within a single busbar, facilitating the integration of complex power distribution systems. The layers are firmly bonded, ensuring mechanical stability and reliable electrical performance.​

2. Reduced inductance and capacitance:

Compared to traditional busbars or cables, laminated busbars offer significantly reduced inductance and capacitance. The close proximity of the conductive layers and the use of high-quality insulating materials minimize the loop area, thereby lowering inductance. This reduction in inductance helps to reduce voltage spikes and noise in the system, improving overall system efficiency and reliability.​

3. Space saving:

The compact design of laminated busbars makes them ideal for applications where space is limited. By integrating multiple current paths into a single, flat structure, they occupy much less space than traditional wiring harnesses or individual busbars. This space-saving feature is particularly valuable in modern electronic devices and systems that are becoming increasingly miniaturized.​

4. High current carrying capacity:

Laminated busbars are capable of carrying high currents due to their large cross-sectional area of conductive materials. The multiple layers of conductors work together to distribute the current, reducing current density and minimizing power losses. This high current carrying capacity makes them suitable for use in high-power applications such as electric vehicles, industrial drives, and renewable energy systems.​

5. Improved thermal performance:

The multi-layer structure of laminated busbars also contributes to better thermal performance. The large surface area and efficient heat conduction of the conductive layers allow for effective heat dissipation. Additionally, some laminated busbars are designed with thermal management features, such as heat sinks or thermal interface materials, to further enhance heat transfer and prevent overheating.​

6. Customizable:

Laminated busbars can be customized to meet specific application requirements. They can be designed in various shapes, sizes, and layer configurations to fit into tight spaces and accommodate different current and voltage levels. This customization flexibility makes them a versatile solution for a wide range of power electronic systems.

Applications of Laminated Busbars

Laminated busbars are indispensable in modern power-dense and performance-critical applications:

Electric & Hybrid Vehicles (EVs/HEVs/PHEVs): Traction inverters, DC-DC converters, onboard chargers, battery packs.

Renewable Energy: Solar inverters, wind turbine power converters.

Industrial Automation & Drives: Variable Frequency Drives (VFDs), servo drives, UPS systems.

Power Supplies: High-power server/telecom rectifiers, industrial SMPS.

Medical Equipment: MRI machines, X-ray generators, large diagnostic systems.

Traction Systems: Rail, marine.

Conclusion

The laminated busbar is a sophisticated engineering solution that addresses the limitations of traditional power distribution methods. By offering unparalleled advantages in electrical performance (low inductance), thermal management, space utilization, reliability, and customization, it has become a cornerstone technology enabling the advancement of high-power, compact, and efficient electronic systems across numerous critical industries.

FAQ

Q: How does a laminated busbar differ from a traditional busbar?​

A: Traditional busbars are usually single-layer conductive bars, while laminated busbars have a multi-layer structure with alternating conductive and insulating layers. Laminated busbars offer advantages such as reduced inductance and capacitance, space saving, and better thermal performance compared to traditional busbars.​

Q: What factors affect the current carrying capacity of a laminated busbar?​

A: The current carrying capacity is influenced by factors such as the material and cross-sectional area of the conductive layers, the number of layers, the ambient temperature, and the cooling conditions. Larger cross-sectional areas, more layers, and efficient cooling all contribute to a higher current carrying capacity.​

Q: Can laminated busbars be repaired if damaged?​

A: Repairing laminated busbars can be challenging due to their multi-layer and bonded structure. In most cases, damaged laminated busbars are replaced rather than repaired to ensure the reliability and performance of the power system.
