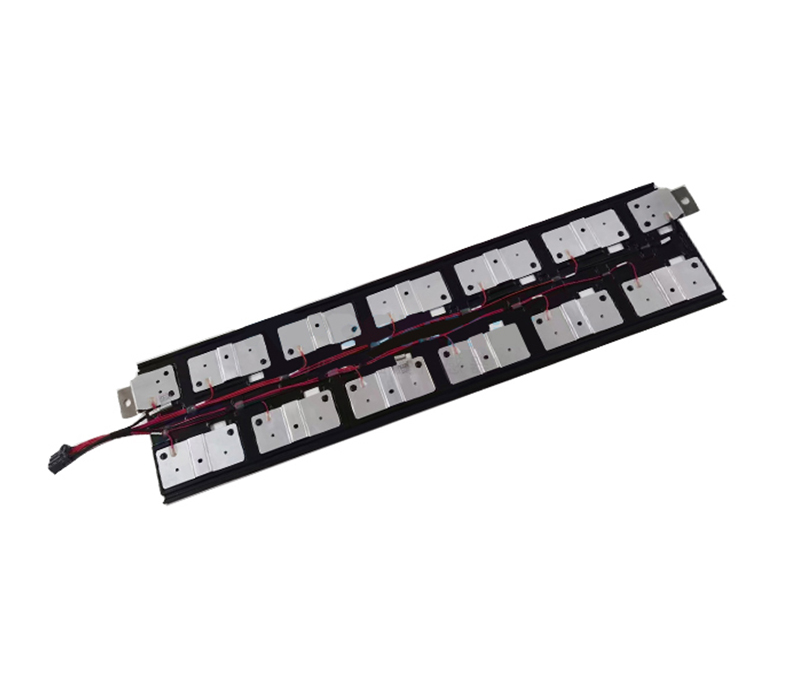

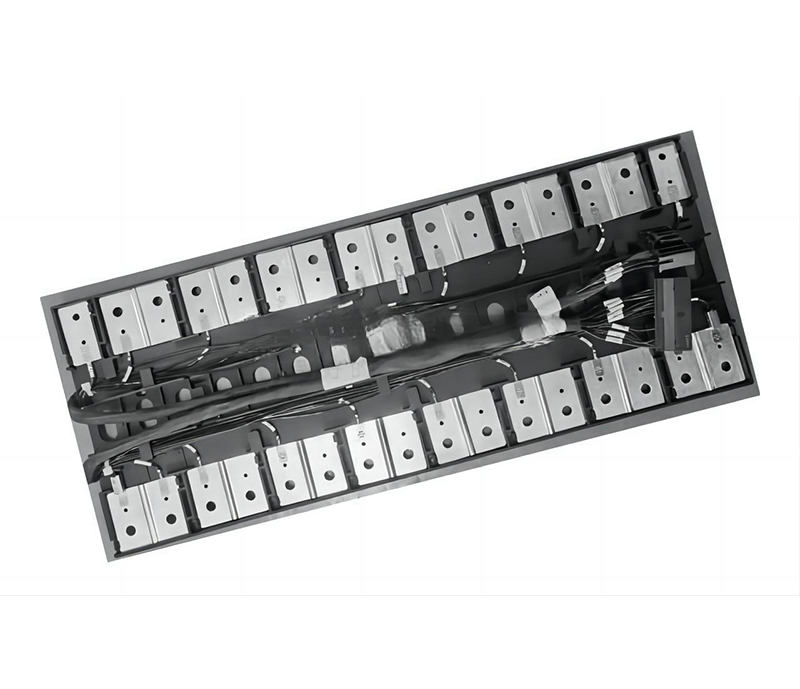

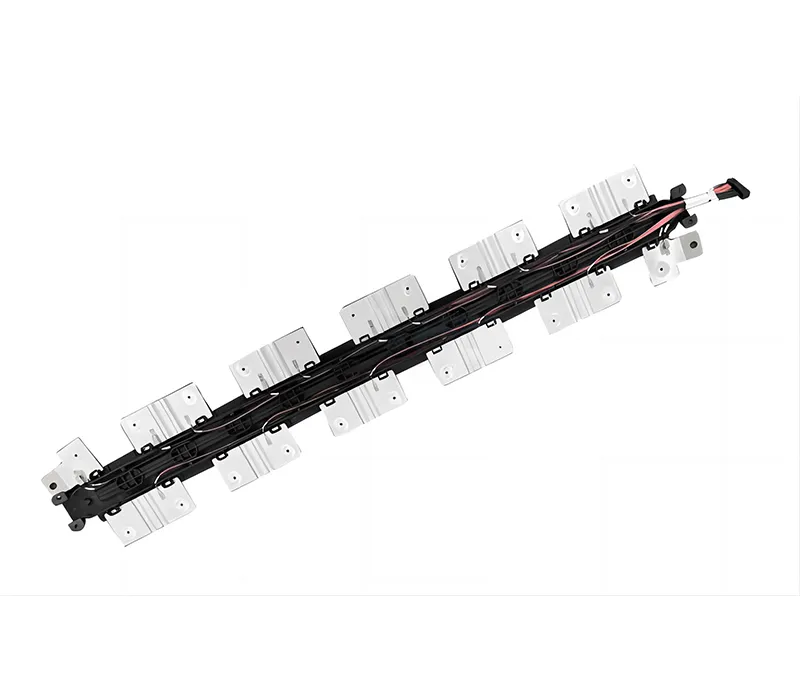

Wiring type plastic cover CCS

Product materials
Plastic cover: PP-GF20 or PPO or PC-ABS
Wire harness: XLPE, 150℃
Aluminum terminal: AL1060-H24
NTC: Thermistor, wave seal resistor, resistance accuracy 1%, B value accuracy 1%, such as 10K3930, 10K3435, 10K3950 support customization
Material: aluminum bus AL1060-O, positive and negative nickel pressure 0.1mm, cleanliness RFU<100

Product performance
Operating temperature range: -40~125℃
Temperature acquisition resistance accuracy: R25℃ 1% B value 1% (customizable)
Withstand voltage performance: 3000V (AC), continuous 60S, leakage current <1mA
Insulation resistance: >500 megohms (1000VDC)
Flame retardant grade: meets UL94V-0
Output signal: analog signal output

Product advantages
Wire harness: stable signal transmission
Structure: flexible structure, support design changes
Temperature acquisition: excellent waterproof and moisture-proof performance
Voltage acquisition: high degree of automation

Product parameters
1. Isolation board: fire retardant. The material is PC+ABS or PA66, etc.
2. Collection end shell: pure nickel shell, thin shell wall, fast heat conduction, good welding penetration effect.
3. 1060 aluminum bar: light structure, low impedance, fast heat dissipation.
4. Connection and fixation: laser welding, firm and beautiful, high degree of automation.
5. High sensitivity and rapid response (resistance value and B value accuracy can reach ±1% respectively).
6. The finished product withstands voltage up to 4200VDC.
7. Built-in high-reliability single-ended resistor, equipped with patented internal structure technology.

Applications
New energy vehicles, new power grid energy storage, industrial energy storage, communication energy storage, home energy storage, mobile portable energy storage, etc.
