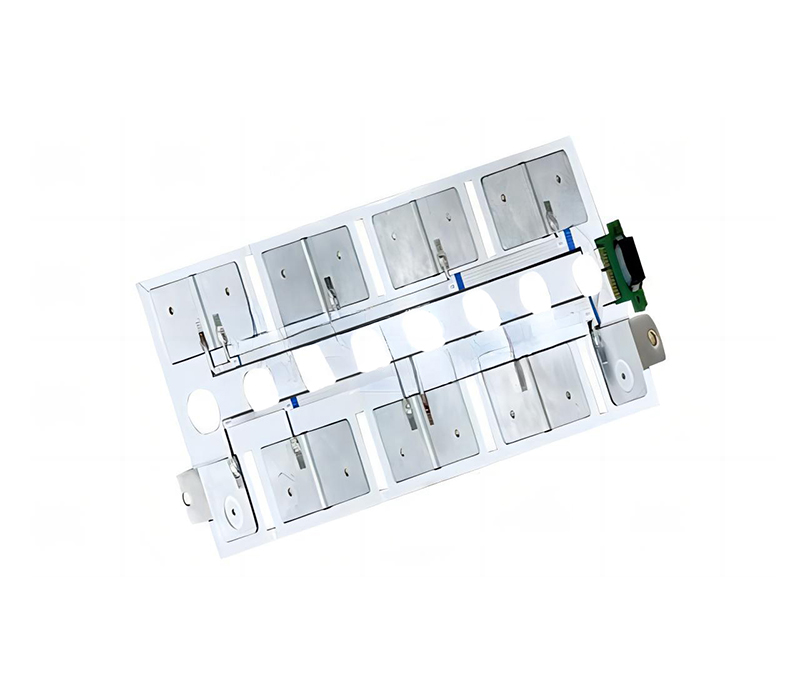

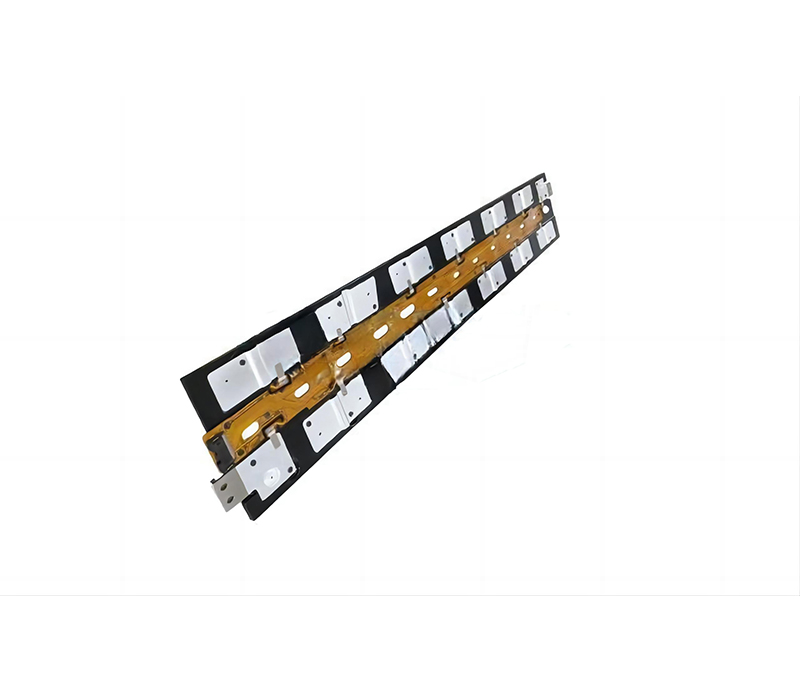

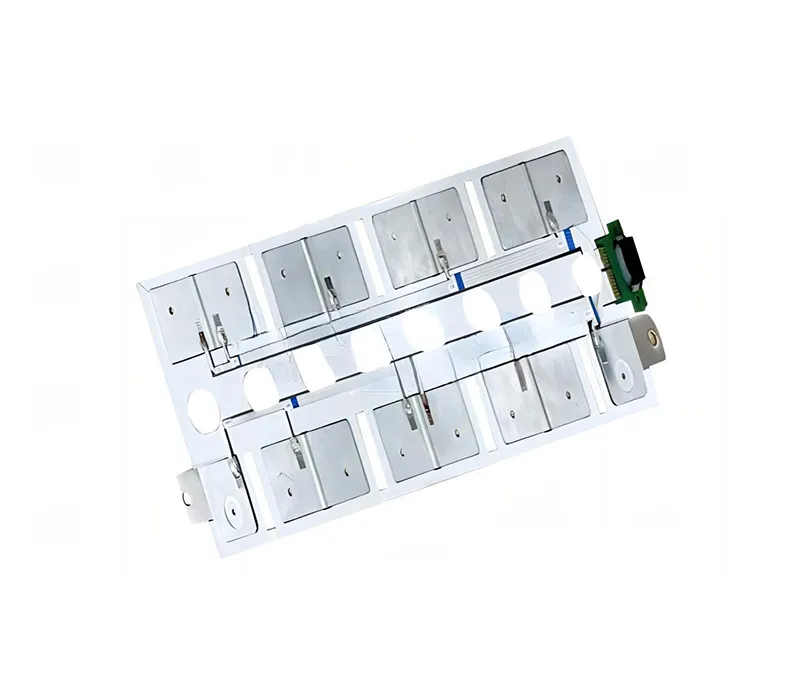

FFC CCS Program

Material: FFC/hot pressing film/aluminum bar, etc.
Use temperature range: -50~150℃
Output signal: analog signal output

Product advantages
1. Integrated temperature sensor and voltage signal acquisition;
2. Integrated connector for quick connection;
3. Integrated fuse protection;
4. Avoid wiring errors;
5. Reduce assembly actions and more reliable performance;
6. More compact space and smaller volume;
7. Adapt to automobile automation mass production.

Product parameters
1. Isolation board: fire retardant. The material is FFC+ABS or PA66, etc.
2. Collection end shell: pure nickel shell, thin shell wall, fast heat conduction, good welding penetration effect.
3. 1060 aluminum bar: light structure, low impedance, fast heat dissipation.
4. Connection and fixation: laser welding, firm and beautiful, high degree of automation.
5. High sensitivity and rapid response (resistance value and B value accuracy can reach ±1% respectively).
6. The finished product withstands voltage up to 4200VDC.
7. Built-in high-reliability single-ended resistor, equipped with patented internal structure technology.

Applications
New energy vehicles, new power grid energy storage, industrial energy storage, communication energy storage, home energy storage, mobile portable energy storage, etc.
