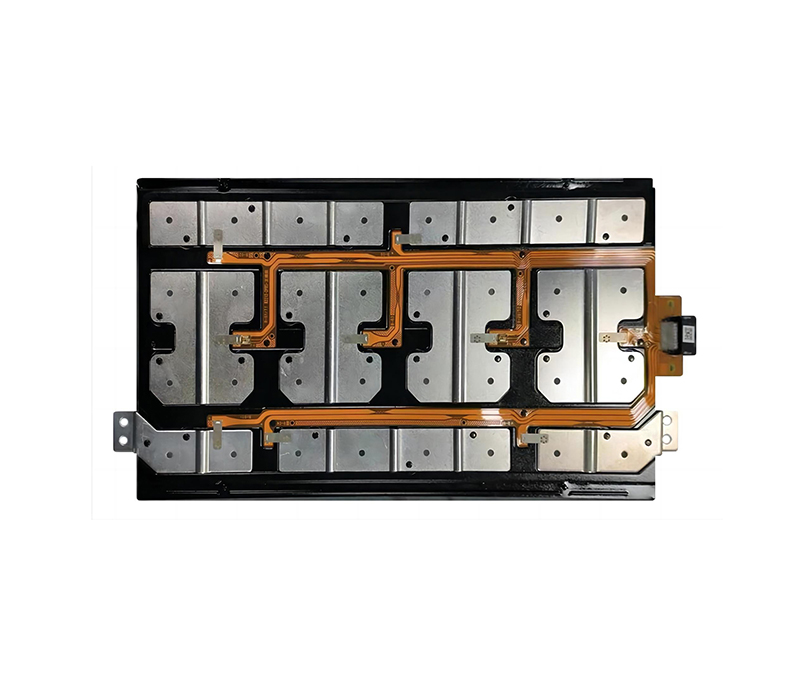

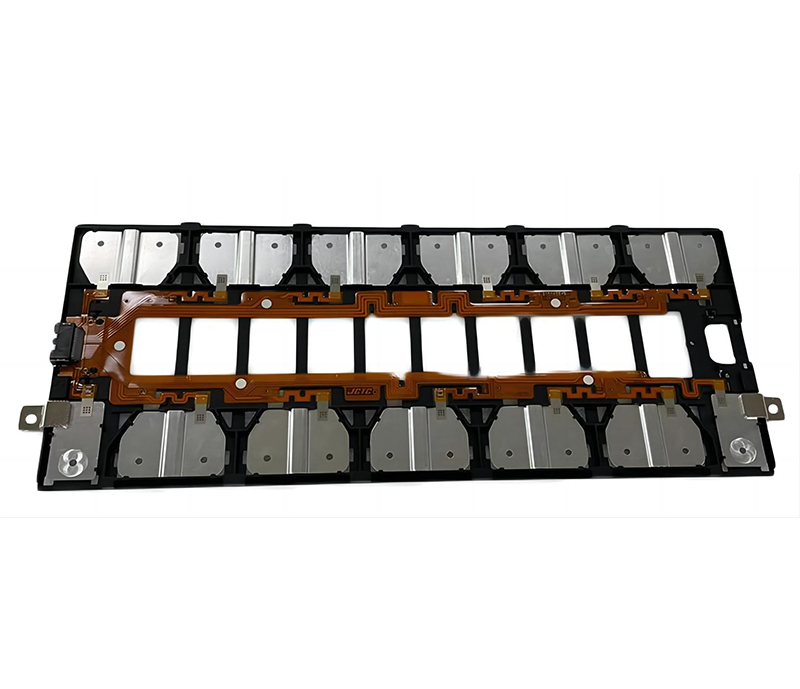

CCS-Plastic Cover

Product materials
Plastic cover: PP-GF20 or PPO or PC-ABS
FPC: Meet long-term overcurrent 1A, overcurrent protection: 5A current, voltage loop FUSE can be disconnected within 1.5s, loop resistance <1 ohm, connector/nickel sheet under the reinforcement plate, the circuit meets the withstand voltage 1000V (AC), continuous 60S, current <1mA, insulation meets >500 megohms (1000VDC)
Collection nickel sheet: pure nickel N6-1/2H (0.3t)
Material: FPC/hot pressing film/aluminum bar, etc.
NTC: SMD type thermistor, 0603, 0402
Aluminum bus: AL1060-0, positive and negative poles pressed nickel 0.1mm cleanliness RFU<100
Protective glue: VS-8117B, UV0281

Performance
Operating temperature range: -40~125℃
Temperature collection resistance accuracy: R25℃ 1% B value 1% (customizable)
Withstand voltage performance: meet 1000V (AC), last 60S, leakage current <1mA
Insulation resistance: >500 megohms (1000VDC)
Flame retardant grade: meet UL94V-0
Output signal: analog signal output
FPC: stable model transmission
Production: high degree of automation
Lightweight: thin size, light weight
Appearance: flat and beautiful

Product parameters
1. Isolation board: fireproof and flame retardant. The material is FPC+ABS or PA66, etc.
2. Collection end shell: pure nickel shell, thin shell wall, fast heat conduction, good welding penetration effect.
3. 1060 aluminum bar: light structure, low impedance, fast heat dissipation.
4. Connection and fixation: laser welding, firm and beautiful, high degree of automation.
5. High sensitivity and rapid response (resistance value and B value accuracy can reach ±1% respectively).
6. The finished product withstands voltage up to 4200VDC.
7. Built-in high-reliability single-ended resistor, equipped with patented internal structure technology.

Product Application
New energy vehicles, new power grid energy storage, industrial energy storage, communication energy storage, home energy storage, mobile portable energy storage, etc.
