In the world of electrical systems, a busbar is a critical component designed to collect, distribute, and transfer electrical current efficiently. Unlike traditional wires or cables, busbars are typically solid metal bars (or strips) that serve as a central hub for connecting multiple electrical devices, ensuring stable power flow in industrial, commercial, and residential setups.
An electrical busbar is a conductive metal component—usually made of copper, aluminum, or brass—used to aggregate electrical current from a power source and distribute it to various loads or equipment. Its core function is to simplify power distribution: instead of running individual wires from the source to every device, multiple components (like circuit breakers, transformers, or inverters) connect directly to the busbar.
This design not only streamlines wiring but also reduces the risk of loose connections or current overloads, making busbars a staple in high-current applications where reliability is critical.
The working principle of a busbar revolves around its high conductivity and low electrical resistance, which enable efficient current transfer. Here’s a step-by-step breakdown of its operation:
1. Current Inflow: The busbar receives electrical current from a primary power source, such as a generator, transformer, or mains supply.
2. Current Distribution: The conductive metal body of the busbar carries the current evenly across its length. Multiple electrical devices (e.g., motors, switches, or batteries) connect to the busbar via terminals or connectors.
3. Current Outflow: Each connected device draws the required amount of current from the busbar, ensuring a steady and direct power supply.
Since busbars have a large cross-sectional area, they minimize resistance and heat generation—even when handling high currents—preventing overheating and power loss.
Electrical busbars offer several key benefits over conventional wiring, making them preferred for many applications:
High Current-Carrying Capacity: Their large cross-section and low resistance allow them to handle much higher currents than standard wires, suitable for industrial machinery or power distribution panels.
Improved Reliability: Fewer connection points reduce the risk of loose wires or short circuits, lowering downtime and maintenance costs.
Space Efficiency: Busbars are compact and can be mounted vertically or horizontally, saving space in electrical enclosures compared to bulky wire bundles.
Easy Installation & Maintenance: Adding or removing devices (e.g., circuit breakers) is simpler with busbars, as connections are modular and accessible.

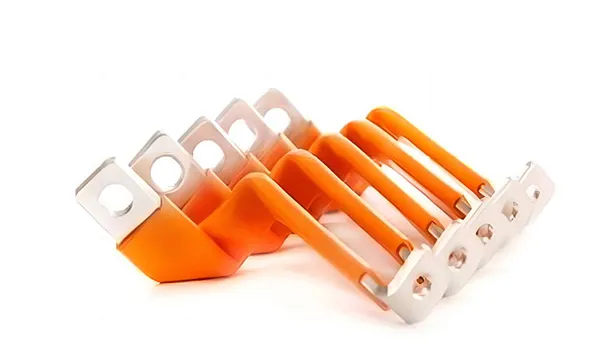

A flexible busbar is made of multiple thin copper or aluminum layers laminated with insulation, allowing it to bend and adapt to various layouts. It is ideal for compact electrical cabinets, battery connections, and automotive power systems where vibration or movement occurs. Its flexibility enhances vibration resistance and makes installation easier in tight spaces.
A rigid busbar is a solid metal bar that offers high mechanical strength and current-carrying capacity. Commonly used in switchgear, transformers, and industrial power panels, rigid busbars are suitable for fixed installations where durability and stable connections are required. They can be coated or insulated to prevent corrosion and short circuits.
Busbar connections must be secure and low-resistance to prevent overheating. The most common connection methods include:
Bolted Connections: The most widely used method. Busbars are drilled with holes, aligned, and fastened together using bolts, nuts, and washers. Conductive grease is often applied to reduce resistance.
Welding: For permanent, high-strength connections. Techniques like TIG welding (for copper) or MIG welding (for aluminum) fuse busbars together, eliminating loose points.
Crimping: Uses a crimping tool to compress a metal sleeve around the busbar and a terminal, creating a tight, low-resistance bond. Common in automotive or small-scale electrical systems.
Clamping: Quick-connect clamps (e.g., spring-loaded or screw-on clamps) attach devices to the busbar, ideal for temporary or modular setups.
Busbars are integral to nearly every electrical system that requires efficient power distribution. Some of their most common applications include:
Electrical Distribution Panels: Found in homes, offices, and factories, busbars distribute mains power to circuit breakers and outlets.
Renewable Energy Systems: In solar farms or wind turbines, busbars collect power from panels/turbines and send it to inverters or the grid.
Electric Vehicles (EVs): Flexible busbars connect batteries, motors, and chargers, handling high currents while withstanding vehicle vibration.
Industrial Machinery: Heavy-duty rigid busbars power large equipment like motors, compressors, and manufacturing lines.
Data Centers: Busbars supply stable power to servers and cooling systems, ensuring uninterrupted operation.
A busbar is an essential component in modern electrical systems, providing efficient, reliable, and safe power distribution. Whether flexible or rigid, busbars help simplify system design, improve energy efficiency, and ensure the stability of electrical networks across industries.
