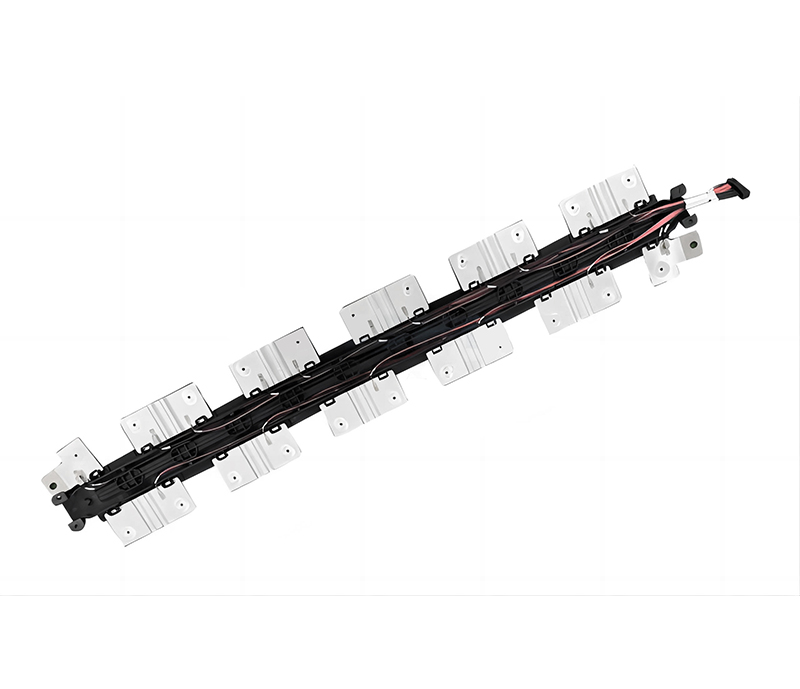

An electrical busbar, often simply referred to as a busbar, is a crucial component in electrical power systems. It is a conductive strip, bar, or other form of conductor designed to collect, distribute, and transmit electrical power. Busbars are typically made from highly conductive materials such as copper or aluminium and are used in various electrical installations, from small-scale industrial setups to large - scale power distribution networks. They act as a central connection point, allowing the efficient transfer of electrical energy between different components of a power system, such as generators, transformers, switchgear, and distribution lines.
Busbars play a critical role in power distribution systems due to their ability to:
Efficiently Distribute High Currents: They handle higher current loads compared to conventional cables, reducing energy loss.
Centralize Connections: Simplify wiring by acting as a common junction point for multiple circuits.
Improve Flexibility: Enable easy modifications or expansions of electrical systems.
Enhance Heat Dissipation: Their flat surface area allows better cooling compared to round cables.
Save Space: Compact design reduces clutter in enclosures and panels.
1. Copper Busbars
Copper busbars are widely used due to their excellent electrical and mechanical properties. Copper has a very high electrical conductivity, second only to silver, which means it offers minimal resistance to the flow of electricity, resulting in low power losses. They also have good mechanical strength, making them suitable for applications where the busbar needs to withstand mechanical stress, such as in vibrating environments or where heavy connections are required. Copper is highly ductile, allowing it to be easily formed into various shapes and sizes.
2. Aluminium Busbars
Aluminium busbars are another popular choice, mainly due to their cost - effectiveness and lower weight compared to copper. Aluminium has a lower electrical conductivity than copper, but it is much cheaper and lighter. For applications where the cost is a major concern and the current levels are not extremely high, aluminium busbars can be a viable alternative. They are commonly used in medium - to - low - current applications, such as in commercial buildings, residential Power Distribution System, and some industrial setups.
Comparative Analysis of Copper Busbars and Aluminium Busbars
|
Property |
Copper Busbars |
Aluminium Busbars |
|
Electrical Conductivity |
Very high, results in low power losses |
Lower than copper, higher power losses for the same current |
|
Cost |
More expensive due to the higher cost of copper |
Cheaper, making them more cost - effective for large - scale applications on a budget |
|
Weight |
Heavier, which can be a consideration in installations where weight is a factor |
Lighter, easier to handle and install, especially in overhead applications |
|
Mechanical Strength |
Higher, better able to withstand mechanical stress |
Lower, may require thicker sections for the same mechanical requirements |
|
Corrosion Resistance |
Good, but not immune to corrosion in extreme environments |
More prone to corrosion, requires proper protection in many cases |
|
Ductility |
Excellent, can be easily formed into various shapes |
Good ductility, but not as high as copper |

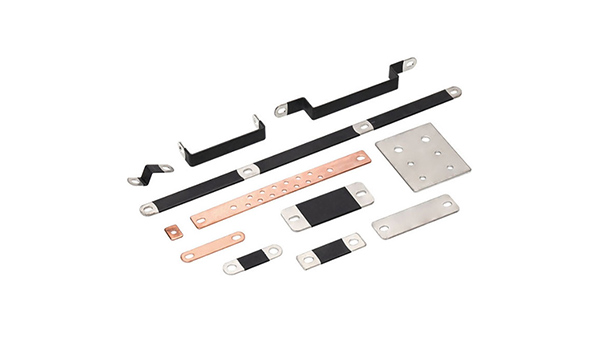

| Type | Structural characteristics | Core advantages | Typical application scenarios | Technical parameters |
| Rigid busbar | Solid copper/aluminum bar, rectangular or circular cross section, tin/silver plated surface | High current carrying capacity, high mechanical strength | Distribution cabinet, main circuit of industrial equipment, | Customized cross-sectional area |

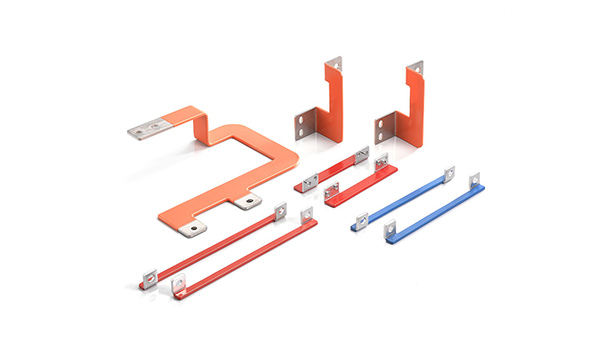

| Flexible busbar | Multi-layer copper foil braided or laminated, covered with elastic insulation layer | Vibration resistance, thermal expansion adaptation | Transformer, rail transit, energy storage equipment |
IEC 61238 vibration test standard |
| Insulated busbar | Conductor coated with epoxy resin/silicone | Reduce installation space by 50%, arc protection | Compact switch cabinet, medical equipment, elevator control box | UL 1558 certification |
High Current Handling Capacity: Busbars are designed to carry large amounts of electrical current, making them suitable for high - power applications.
Low Impedance Path: They provide a low - resistance path for the flow of electricity, minimizing power losses and heat generation.
Simplified System Design: By acting as a central connection point, busbars reduce the complexity of the electrical system, making it easier to install and maintain.
Easy Expansion: Allows for the easy addition of new components or loads to the electrical system without major rewiring.
Mechanical Robustness: Depending on the material (such as copper), busbars can have high mechanical strength, making them durable in various environments.
Cost: Copper busbars, in particular, can be expensive, especially when used in large quantities.
Space Requirements: For very high - current applications, busbars may require larger cross - sectional areas, which can take up more space in the electrical installation.
Corrosion Issues: Both copper and aluminium busbars are susceptible to corrosion in certain environments, although copper is more resistant. This may require additional protective measures, adding to the cost and maintenance requirements.
Thermal Expansion: Busbars can expand and contract with changes in temperature, which may require the use of expansion joints in long - length installations to prevent mechanical stress on the connections.
Bolted Connections: This is a common method where the busbars are connected using bolts and nuts. The surfaces of the busbars are usually cleaned and coated with a conductive paste to ensure good electrical contact. Bolted connections are relatively easy to install and can be disassembled for maintenance, but they require proper torqueing to ensure a tight and reliable connection.
Welded Connections: In this method, the busbars are welded together. Welding provides a strong and permanent connection with low electrical resistance. However, it is a more permanent solution and makes disassembly for maintenance more difficult. It is often used in applications where a very reliable connection is required and where the busbars are not likely to need to be disconnected in the future.
Clamped Connections: Special clamps are used to hold the busbars in place and make the electrical connection. Clamped connections are quick to install and can be adjusted if necessary. They are commonly used in busbar trunking systems and other modular installations.
Plug - in Connections: These are used in busbar trunking systems, allowing for easy connection of tap - off units. The tap - off units can be plugged into the busbar trunking at any point along its length, making it very convenient for adding new loads.
In conclusion, electrical busbars are essential components in power distribution systems, offering a range of benefits in terms of efficiency, reliability, and ease of installation and expansion. While they have some disadvantages, such as cost and corrosion concerns, the appropriate choice of busbar type (based on material and form factor) and proper installation and maintenance can help to mitigate these issues. Understanding the different types, advantages, disadvantages, and connection methods of busbars is crucial for designing and maintaining efficient and reliable electrical power systems.
Q1: How do you size a busbar for a specific current?
A: Sizing depends on current load, material, ambient temperature, and cooling methods. Use standards like IEC 61439 or NEC, and consider cross-sectional area to minimize resistance and overheating.
Q2: What are signs of a failing busbar?
A: Overheating, discoloration, unusual odors, voltage fluctuations, or visible damage like cracks or corrosion.
Q3: How to maintain electrical busbars?
A: Regularly inspect for tight connections, clean surfaces to prevent oxidation, check for thermal hotspots (using infrared cameras), and ensure proper ventilation.
