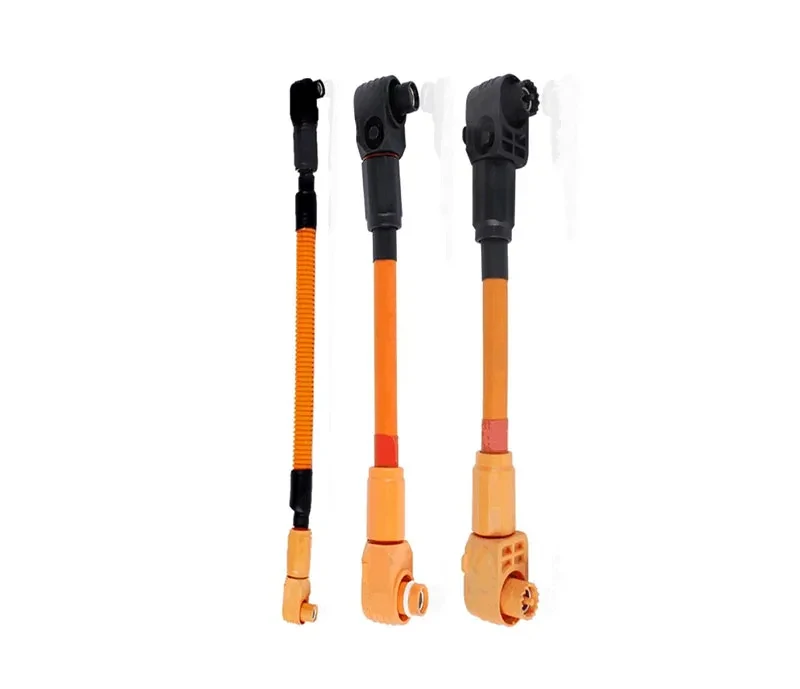

You're installing battery racks in an energy storage system, and the cable routing isn't cooperating. The connector needs to sit at a specific angle to keep the cable from straining, but the mating interface won't line up. That's when a Energy Storage Connector with 360° rotation turns a frustrating installation into a straightforward one. The FJ6Ev HV Connector was engineered with a 360° rotating locking system that lets the connector rotate freely after mating, allowing the cable to find its natural position without stress. This article explains why rotation capability matters in real installations, how the quick-lock mechanism simplifies field assembly, and what safety features protect operators in high-voltage environments.
Q: How does 360° rotation improve installation?
A: After the connector is mated, the plug can rotate freely through 360°. This allows the installer to position the cable at the optimal angle, reducing strain on the connection and preventing the cable from fighting against the connector's orientation. In tight rack spaces where cable routing is constrained, this flexibility eliminates the need for forced alignment.
Q: What locking system does the connector use?
A: The FJ6Ev uses a dual color-coded key system with a red push-button lock. The color-coding eliminates polarity errors during installation—red for positive, black for negative—while the push-button lock prevents accidental disconnection under vibration. The connector also features a 180° in-line locking design that provides twelve locking angles at 30° increments.
Q: How does the quick-lock mechanism work?
A: The quick-lock system enables one-hand connection and disconnection without tools. A simple press locks the connector in place, and a press-to-release function allows field unlocking without special equipment. This design supports fast assembly of large volumes of connectors on-site, significantly reducing installation time.
Energy storage installations aren't done in pristine laboratories. They're assembled in racks, cabinets, and containers where space is tight and cable routing is constrained. A connector that locks into a fixed orientation forces the installer to work around the connector. A connector that rotates 360° works around the installer. The FJ6Ev's rotation capability means the cable can approach the connector from any direction, find its natural bend radius, and stay there without strain. This reduces the risk of cable damage, improves long-term reliability, and speeds up installation. The quick-lock mechanism complements this flexibility—installers can connect and disconnect without tools, making maintenance and system reconfiguration faster and less labor-intensive.
Cable strain is a silent killer of connections. When a cable is forced into an unnatural position, the conductors experience constant stress. Over time, this stress can cause insulation damage, conductor fatigue, and connection failure. The FJ6Ev's free rotation eliminates this stress by allowing the cable to find its natural position. The connector holds the electrical connection secure while the cable routes comfortably—no fighting, no strain.
The 180° in-line locking design provides twelve locking angles at 30° increments. This means the connector can be locked into the most convenient position for the installation without compromising security. The push-button lock maintains the connection under vibration—critical in energy storage systems where inverters, transformers, and cooling equipment generate constant low-frequency vibration.
| Parameter | Specification |
|---|---|
| Application | Battery module and energy storage system connections |
| Rotation | 360° free rotation after mating |
| Locking System | 180° in-line design, 12 locking angles (30° increments) |
| Locking Mechanism | Red push-button lock with dual color-coded keys |
| Connection Method | Quick lock and press-to-release, tool-free |
| Voltage Compatibility | High-voltage DC (1000V–1500V class) |
| Ingress Protection | IP67 sealed construction |
| Flammability Rating | UL 94V-0 materials |
| Safety Certification | UL 4128 compliant |
High-voltage connectors carry serious risk. The FJ6Ev incorporates multiple safety features that go beyond basic requirements:
The connector is designed with touch-proof insulation and finger guards to prevent accidental contact with live parts. In field installations where technicians are working in tight spaces, this protection reduces the risk of electric shock. The design meets IP6x requirements for finger-safe operation.
The dual color-coded key system eliminates polarity errors. Red keys designate positive voltage lines; black keys mark negative return paths. This physical coding makes it impossible to mate a positive connector to a negative terminal, preventing the catastrophic damage that reverse polarity can cause in high-voltage systems.
The connector complies with UL 4128, the standard for connectors in electrochemical battery applications. UL 4128 requires connectors to be rated for up to 2000V DC and designed for non-load-break operation. The standard also specifies temperature rise limits (≤45K), material flammability ratings (UL 94V-0), and mechanical durability requirements. Compliance provides third-party verification that the connector meets the safety standards for energy storage systems.
The FJ6Ev serves a range of applications across the energy storage landscape:
Connecting individual battery modules within a rack is a core application. The 360° rotation and quick-lock mechanism simplify installation in tight rack spaces, while the high current capacity ensures stable power transfer between modules.
The connection between the battery rack and the power conversion system (PCS) is another critical point. The FJ6Ev's voltage compatibility and sealed construction make it suitable for these high-power connections, where reliability directly affects system uptime.
The IP67 rating provides full protection against dust and water immersion, making the connector suitable for outdoor installations, containerized storage systems, and industrial environments where moisture and dust are constant challenges.
Q: Why does 360° rotation matter for energy storage installations?
A: In tight rack spaces and containerized systems, cable routing is constrained. A fixed-orientation connector forces the cable into unnatural positions, causing strain that can lead to insulation damage and connection failure. 360° rotation allows the cable to find its natural position, reducing stress and improving long-term reliability.
Q: What's the difference between quick-lock and threaded connectors?
A: Quick-lock connectors use a press-to-mate mechanism that requires no tools, enabling faster installation and easier maintenance. Threaded connectors provide a more secure mechanical lock but require tools and more time to connect. For high-volume installations where speed matters, quick-lock is the practical choice.
Q: How does the push-button lock prevent accidental disconnection?
A: The push-button lock requires deliberate action to release. Vibration and thermal cycling won't loosen the connection because the lock maintains engagement until the button is pressed. This is critical in energy storage systems where a loose connection can cause arcing and fire risk.
Q: What certifications should I verify for energy storage connectors?
A: Verify UL 4128 compliance for North American safety requirements. Also look for IP67 rating for environmental protection, UL 94V-0 for material flammability, and RoHS/REACH compliance for material safety. These certifications document that the connector meets industry standards for performance and safety.
An Energy Storage Connector with 360° rotation, quick-lock mechanism, and IP67 protection is essential for fast, reliable installation in high-voltage battery systems. The FJ6Ev HV Connector delivers 360° free rotation after mating for optimal cable routing, 180° in-line locking with 12 locking angles for vibration resistance, quick-lock and press-to-release for tool-free installation, dual color-coded keys for polarity safety, IP67 ingress protection for harsh environments, and UL 4128 compliance for energy storage applications.
Whether you're assembling battery racks, connecting modules to inverters, or specifying components for containerized storage systems, this connector offers the rotation flexibility and safety features that modern installations demand. With 20+ years of manufacturing expertise and internationally certified quality, the supplier supports projects from design through delivery.
Contact Haiyan New Energy for a storage connector configuration assessment → their team can evaluate your installation requirements, recommend the appropriate model, and provide samples for testing. Get a connector that rotates to fit your space—so installation goes faster and cables last longer.
