You're designing a power distribution system, and the wiring is becoming a tangled mess—rigid busbars that don't bend, cables that take up too much space, and connections that are time-consuming to install. A composite laminated busbar changes that equation entirely. It's a flexible, easy-to-install electrical connection solution designed to simplify wiring and ensure reliable electrical connections. This article walks through what makes this busbar technology genuinely practical—from its flexibility that allows routing around obstacles to its durable construction that ensures long-lasting performance in a wide range of applications.
Q: What makes a composite laminated busbar different from traditional rigid busbars?
A: Traditional busbars are rigid and difficult to route in tight spaces. A composite laminated busbar is highly flexible, allowing for easy bending and routing around obstacles. This flexibility simplifies installation and reduces the need for complex cable harnesses.
Q: Is the busbar durable enough for industrial applications?
A: Yes. The busbar is resistant to wear and tear, ensuring long-lasting performance. The plastic dip and powder spray coating provides robust insulation and corrosion protection, making it suitable for demanding industrial environments.
One of the most significant advantages of a composite laminated busbar is its flexibility. Unlike rigid copper or aluminum busbars that require precise alignment and straight runs, a flexible busbar can bend and route around obstacles with ease.
In complex power distribution systems, space is often tight and obstacles are everywhere—other components, enclosures, and structural elements. A flexible busbar can be routed through these constraints without requiring custom bends or additional connectors. This flexibility reduces the number of connections needed, which in turn reduces potential failure points.
Traditional wiring solutions often rely on bulky cable harnesses that take up space and are time-consuming to assemble. A flexible laminated busbar replaces these harnesses with a single, flat, bendable conductor that carries the same current in a fraction of the space. The result is a cleaner, more organized enclosure and faster assembly times.
Installation time is a major cost factor in any electrical project. A busbar that's simple to install reduces labor costs and gets systems online faster. The composite laminated busbar is designed to be simple to install, reducing the time and effort required for wiring.
Instead of cutting, stripping, and terminating multiple cables, installers work with a single, pre-fabricated busbar that's ready to mount. The flexibility of the busbar means it can be positioned without specialized bending tools or custom fabrication. Connections are straightforward, with clear termination points that eliminate guesswork.
A system that's simple to install doesn't require highly specialized training. New technicians can become productive quickly, reducing the burden on experienced staff and accelerating project timelines.
Any electrical connection is only as good as its reliability. The composite laminated busbar is engineered to provide consistent and reliable electrical connections, minimizing faults. Its construction is resistant to wear and tear, ensuring long-lasting performance.
Faulty connections are one of the leading causes of electrical system downtime. Loose terminals, corroded contacts, and fatigued cables all contribute to unexpected failures. The laminated busbar eliminates many of these failure modes by providing a single, continuous conductor with robust, factory-applied insulation.
In industrial environments, equipment is subject to vibration, temperature cycling, and mechanical stress. The busbar's durable construction resists these stresses, maintaining its electrical and mechanical integrity over years of service. The plastic dip and powder spray coating provides an additional layer of protection against corrosion and abrasion.
The composite laminated busbar is suitable for a wide range of applications, from residential to industrial settings. This versatility makes it a practical choice for engineers and procurement professionals who need a single solution for multiple projects.
In residential and commercial buildings, the busbar can be used for main distribution panels, sub-panels, and metering equipment. Its flexibility allows it to be routed in tight spaces where rigid busbars would be impractical.
In industrial settings, the busbar is suitable for motor control centers, switchgear, and power distribution units. Its durability and reliability make it ideal for demanding environments. In renewable energy systems—solar inverters, wind turbine converters, and energy storage systems—the busbar provides the compact, reliable power distribution that these applications require.
The lightweight, flexible design of the composite laminated busbar makes it suitable for electric vehicles and transportation applications where space and weight are critical factors.
| Feature | Benefit |
|---|---|
| Highly Flexible | Easy bending and routing around obstacles |
| Simple Installation | Reduces time and effort required for wiring |
| Reliable Connections | Minimizes faults and ensures consistent performance |
| Durable Construction | Resistant to wear and tear for long-lasting performance |
| Versatile Application | Suitable for residential to industrial settings |
| Plastic Dip/Powder Coating | Provides robust insulation and corrosion protection |
The composite laminated busbar serves multiple applications where flexibility, reliability, and ease of installation are critical:
In main distribution panels and sub-panels, the busbar provides a clean, organized alternative to traditional wiring. The flexibility allows for neat routing, and the reliable connections minimize the risk of loose terminals.
Motor control centers require reliable power distribution to multiple motor starters. The busbar's durable construction and resistance to wear and tear make it suitable for these demanding applications.
Solar inverters and wind turbine converters benefit from the busbar's compact design and reliable connections. The flexibility allows for routing in tight enclosures where space is at a premium.
In electric vehicles, the busbar provides a lightweight, space-efficient alternative to traditional wiring harnesses. The flexibility allows for routing around other components, and the reliable connections ensure consistent power delivery.
Q: What is a composite laminated busbar?
A: A composite laminated busbar is a flexible, easy-to-install electrical connection solution designed to simplify wiring and ensure reliable electrical connections.
Q: What are the key advantages of this busbar?
A: The busbar offers flexibility for easy routing, simple installation that reduces wiring time, reliable connections that minimize faults, and durable construction for long-lasting performance.
Q: What applications is the busbar suitable for?
A: The busbar is suitable for a wide range of applications, from residential to industrial settings, including power distribution panels, motor control centers, renewable energy systems, and electric vehicles.
Q: How does the busbar handle routing around obstacles?
A: The busbar is highly flexible, allowing for easy bending and routing around obstacles without the need for custom fabrication or additional connectors.
Q: Is the busbar durable enough for industrial use?
A: Yes. The busbar is resistant to wear and tear, ensuring long-lasting performance even in demanding industrial environments.
Q: Who manufactures this busbar?
A: The busbar is manufactured by Zhejiang Zhongyan New Energy Co., Ltd. , a reliable partner for busbar production offering customized solutions.

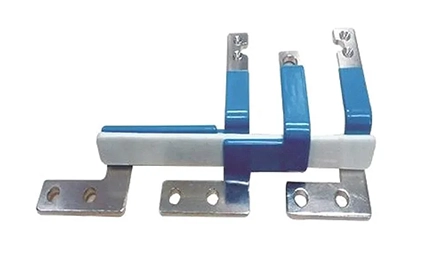

A composite laminated busbar that combines flexibility, ease of installation, reliability, and durability is the foundation of any efficient power distribution system. The plastic dip and powder spray coated busbar from Zhongyan delivers flexible routing, simple installation, consistent connections, and long-lasting performance—all in a solution suitable for residential, commercial, and industrial applications.
Whether you're designing a power distribution panel, a motor control center, a renewable energy system, or an electric vehicle powertrain, Zhongyan offers the technical expertise and manufacturing capability to deliver busbars that meet your exact specifications.
Contact Zhongyan for a custom busbar solution or technical consultation → their team can help you select the right configuration, materials, and coatings for your specific application requirements. Get a busbar solution that simplifies your power distribution from start to finish.
