You’re designing a battery pack for an electric vehicle or a grid-scale energy storage system. Every connection matters. A single loose or failing connection creates resistance, generates heat, and compromises the entire system. Traditional wiring harnesses have hundreds of individual connection points—each one a potential failure.
A CCS integrated busbar changes that equation. It consolidates multiple cell connections into a single, robust assembly that reduces failure points, simplifies manufacturing, and improves long-term reliability. Haiyan New Energy‘s CCS Integrated Busbar is designed for high-current applications where failure isn’t an option. This guide covers what makes CCS integrated busbars the preferred choice for engineers and procurement teams, where they‘re used, and what to look for when specifying them for your next project.
Traditional wiring harnesses have hundreds of individual connection points. Each crimp, each terminal, each wire is a potential failure point. CCS integrated busbars eliminate that complexity by consolidating multiple connections into a single, robust assembly.
A CCS integrated busbar replaces dozens of individual wires and connectors with a single integrated unit. The result: fewer potential failure points, simpler assembly, and more consistent electrical performance. For battery pack manufacturers, this means higher first-pass yield and lower warranty claims.
CCS integrated busbars are designed specifically for high-current environments. The busbar‘s low electrical resistance minimizes power loss and heat generation. In EV battery packs, where every watt-hour counts, this efficiency translates directly into range and performance.
Every CCS Integrated Busbar from Haiyan New Energy undergoes 100% testing for reliability. That’s not a batch sample—it‘s every single unit. For engineers and procurement teams, this level of quality assurance means consistency you can count on, from the first unit to the ten-thousandth.
Battery packs and energy storage systems live in harsh environments—temperature extremes, vibration, humidity, and thermal cycling. Ordinary connections degrade over time. CCS integrated busbars are built to withstand them.
EV battery packs experience constant vibration from the road. Over time, traditional screw terminals and crimped connections can loosen. CCS integrated busbars use robust mechanical designs that maintain secure connections through years of vibration.
Battery packs see wide temperature swings—from cold starts to hot operation. Thermal cycling causes materials to expand and contract, which can loosen traditional connections. CCS integrated busbars are engineered with materials and designs that maintain consistent contact pressure across the full operating temperature range.
Moisture and contaminants can find their way into battery enclosures. CCS integrated busbars use corrosion-resistant materials and sealed connection interfaces that protect against environmental degradation.
In high-current applications, every milliohm of resistance costs energy and generates heat. CCS integrated busbars are designed for electrical efficiency.
The integrated design minimizes the number of transition points where resistance can build up. Lower resistance means less heat generation, which means longer component life and better system efficiency.
A CCS integrated busbar replaces dozens of individual connections with a single assembly step. For high-volume production lines, this simplification translates directly into faster cycle times and lower labor costs. What used to take minutes now takes seconds.
When maintenance is needed, CCS integrated busbars are designed for easy access and inspection. Instead of tracing individual wires through a harness, technicians can inspect the entire connection system at a single point. Less downtime, lower maintenance costs.
Q: What applications are CCS integrated busbars used for?
A: CCS integrated busbars are used in electric vehicle battery packs, energy storage systems, industrial battery applications, and any high-current application where reliable, space-efficient connections are required. The integrated design is particularly valuable in applications where space is limited and reliability is critical.
Q: How does a CCS integrated busbar differ from a traditional busbar?
A: A traditional busbar is a single conductor that distributes power. A CCS integrated busbar combines multiple cell connections into a single integrated assembly. It includes the busbar itself plus the contact system that connects to individual battery cells. The integration eliminates the need for separate wiring and connectors, reducing assembly time and potential failure points.
Q: What quality assurance does Haiyan New Energy provide?
A: Haiyan New Energy performs 100% testing on every CCS Integrated Busbar. This includes electrical testing, mechanical inspection, and reliability verification. For procurement teams, this means consistent quality from every shipment.

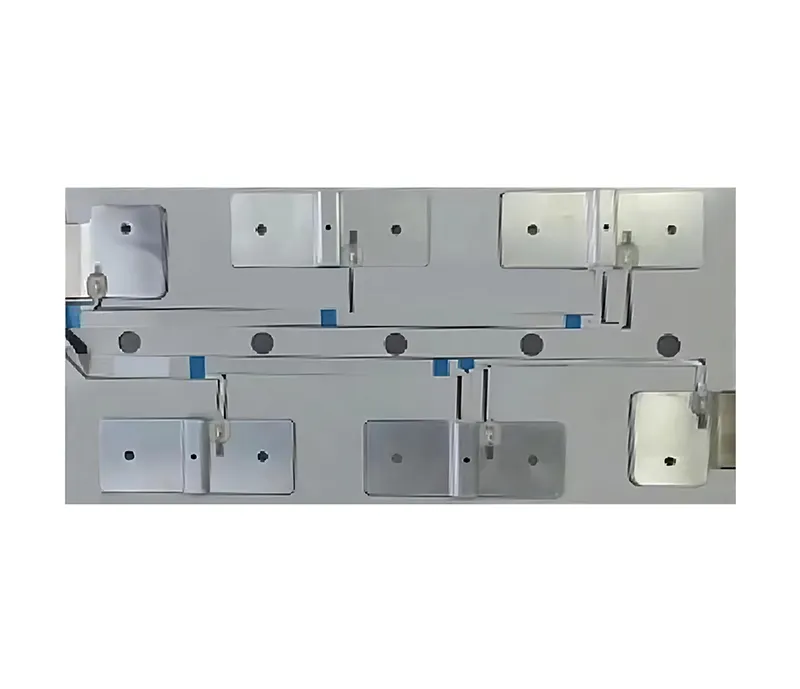

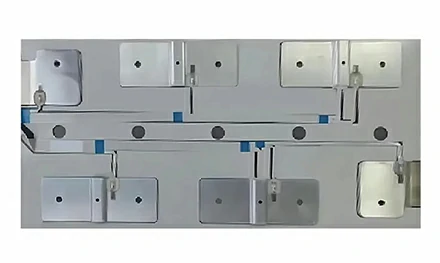

Haiyan New Energy specializes in CCS Integrated Busbar production for high-current applications. The company’s FFC CCS Program delivers integrated busbar solutions that combine secure connections, durability, electrical efficiency, and ease of maintenance.
The CCS Integrated Busbar is designed to provide secure and robust electrical connections, minimizing the risk of failures. It‘s built to withstand harsh environments and heavy use, with high electrical efficiency that ensures optimal performance. The design prioritizes ease of maintenance and inspection, reducing downtime and costs.
For engineers specifying connections for battery packs and energy storage systems, the combination of integrated design, 100% testing, and robust construction makes Haiyan New Energy’s CCS Integrated Busbar a reliable choice. Before you specify connections for your next project, request a sample and run it through your own testing. A connection that fails in the field costs far more than one that‘s verified before production.
Ready to specify CCS integrated busbars for your battery pack or energy storage project? Contact Haiyan New Energy for a quote or to discuss your specific requirements. Share your current connection method, cell configuration, and volume requirements—their team can recommend the right CCS integrated busbar solution for your application.
